GM Induction Heaters are designed to heat the Bearings and other shrink-fit components prior to mounting, using latest technology intelligent microcontroller based electronic controls.
The life of Bearings and other torque transmitting steel components, which are shrunk-fit on shaft, may get cut short due to rough handling and faulty installation or mounting methods. This can be avoided by expanding them by induction heating for the purpose of mounting of the component.
GM Induction Heaters are available in different models for mounting, range of bearings having bore size from 10 mm and above. Fast, safe and economical heating of bearings is best features of GM Induction heaters.

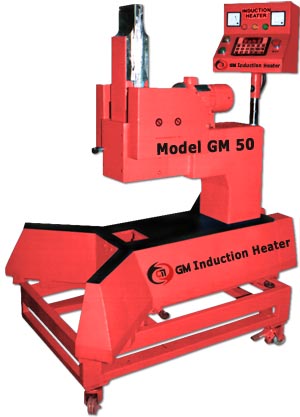

GM Induction Heater - GM 50 has very heavy capacity to heat the components. It has intelligent microcontroller based electronic control.
It weights about 500kg. It can heat a bearing of 1000 kg to temperature as per requirement in customized time.
GM Induction Heater - GM 50 is provided with manual or automated Roll-sliding Arrangement for the standard yoke. The Roll-Sliding Arrangement is so designed that the yoke gets lifted mechanically or automatically rolls off from the vertical supports without rubbing or damaging and scraping mating surfaces. This arrangement provides additional safety, ease of operation and helps to improve productivity.
| TECHNICAL DATA SHEET |
| Product Data |
GM 50 |
| 1) Power |
50 / 80 KVA |
| 2) Voltage |
3Ø X 415V ± 10% |
| 3) Current (Max) |
120 / 190A |
| 4) Power Control |
25% 50% 75% & 100% |
| 5) Temperature Control (Range) |
0-400oC |
| Maximum Temperature |
400oC |
| Accuracy Temperature |
±
3oC |
| 6) Time-Control |
0-99 Minutes |
| 7) Residual Magnestium |
<1A / cm |
| 8) Overall dimensions (wxdxh) (mm) |
1250 X 700 X 1150 |
| 9) Space between supports (wxh) (mm) |
450 X 550 |
| 10) Weight (Main Unit) |
470 Kg. |
| 11) Weight with Standard Yokes |
550 Kg |
| 12 ) Horizontal York Sizes (mm) |
150 X 150 X 800 for bore
dia. 212 MM & above |
| |
----- |
| |
----- |
| 13) Colour of the Equipment |
RED / BLUE & APPLE GREEN |
| Optional Accessories |
| 1) Horizontal Yoke Sizes (mm) |
as per Custom need |
| |
|
| |
|
| |
|
| 2) Digital Thermometer (0-500 C) |
 |
| 3) Roll-Sliding Model |
|
| 4) Swing Arm Model |
|
| 5) Riser Block (Pair) (mm) |
----- |
| 6) Magnetic Temperature Probe |
|
| 7) Equipment Trolley |
|
| 8) Hydraulic Equipment Trolley |
|
| 9) Hydraulic Stacker for loading & unloading of Component |
|
|
