GM Induction Heaters are designed to heat the Bearings and other shrink-fit components prior to mounting, using latest technology intelligent microcontroller based electronic controls.
The life of Bearings and other torque transmitting steel components, which are shrunk-fit on shaft, may get cut short due to rough handling and faulty installation or mounting methods. This can be avoided by expanding them by induction heating for the purpose of mounting of the component.
GM Induction Heaters are available in different models for mounting, range of bearings having bore size from 10 mm and above. Fast, safe and economical heating of bearings is best features of GM Induction heaters.

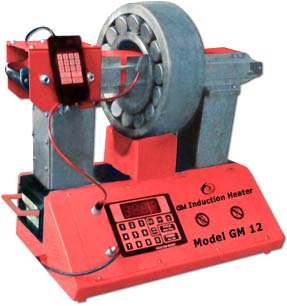

GM Induction Heater - GM12 has heavy capacity to heat the components with intelligent microcontroller based electronic control. It can heat a bearing of 60 kg to temperature of 110oC with in 7 minutes.
GM Induction Heater - GM12 Horizontal & Vertical Model is provided with manual or automated Roll-sliding Arrangement for the standard yoke 80x80x500 mm. The Roll-Sliding Arrangement is so designed that the yoke gets lifted mechanically or automatically rolls off from the vertical supports without rubbing or damaging and scraping mating surfaces. This arrangement provides additional safety, ease of operation and helps to improve productivity.
| TECHNICAL DATA SHEET |
| Product Data |
GM 12 |
| 1) Power |
12 / 16 KVA |
| 2) Voltage |
2 / 3 Ø X 415V ± 10% |
| 3) Current (Max) |
32 / 40A |
| 4) Power Control |
25% 50% 75% & 100% |
| 5) Temperature Control (Range) |
0-250oC |
| Maximum Temperature |
400oC |
| Accuracy Temperature |
±
3oC |
| 6) Time-Control |
0-99 Minutes |
| 7) Residual Magnestium |
<1A / cm |
| 8) Overall dimensions (wxdxh) (mm) |
590 X 330 X 480 |
| 9) Space between supports (wxh) (mm) |
320 X 205 |
| 10) Weight (Main Unit) |
90 Kg. |
| 11) Weight with Standard Yokes |
115 Kg |
| 12 ) Horizontal York Sizes (mm) |
80 X 80 X 500 for bore
dia. 112 MM & above |
| |
----- |
| |
----- |
| 13) Colour of the Equipment |
RED / BLUE & APPLE GREEN |
| Optional Accessories |
| 1) Horizontal Yoke Sizes (mm) |
30 X 30 X 500 for bore dia.
40 MM & above |
| |
40 X 40 X 500 for bore dia.
55 MM & above |
| |
50 X 50 X 500 for bore dia.
68 MM & above |
| |
65 X 65 X 500 for bore dia.
90 MM & above |
| 2) Digital Thermometer (0-500 C) |
 |
| 3) Roll-Sliding Model |
|
| 4) Swing Arm Model |
|
| 5) Riser Block (Pair) (mm) |
----- |
| 6) Magnetic Temperature Probe |
|
| 7) Equipment Trolley |
|
| 8) Hydraulic Equipment Trolley |
|
| 9) Hydraulic Stacker for loading & unloading of Component |
|
|
