GM Induction Heater GM25
(Horizontal & Vertical with or without Boost up Facility)


GM Induction Heaters are designed to heat the Bearings and other shrink-fit components prior to mounting, using latest technology intelligent microcontroller based electronic controls.

The life of Bearings and other torque transmitting steel components, which are shrunk-fit on shaft, may get cut short due to rough handling and faulty installation or mounting methods. This can be avoided by expanding them by induction heating for the purpose of mounting of the component.

GM Induction Heaters are available in different models for mounting, range of bearings having bore size from 10 mm and above. Fast, safe and economical heating of bearings is best features of GM Induction heaters.

GM Induction Heater - GM 25 has heavy capacity to heat the components. It has intelligent microcontroller based electronic control.

It weights about 300kg. It can heat a bearing of 500kg to temperature as per requirement in customized time.

GM Induction Heater - GM 25 is provided with manual or automated Roll-sliding Arrangement for the standard yoke. The Roll-Sliding Arrangement is so designed that the yoke gets lifted mechanically or automatically rolls off from the vertical supports without rubbing or damaging and scraping mating surfaces. This arrangement provides additional safety, ease of operation and helps to improve productivity.

TECHNICAL DATA SHEET
Product Data GM 25
1) Power 25 / 40 KVA
2) Voltage 2 / 3 Ø X 415V ± 10%
3) Current (Max) 60 / 100A
4) Power Control 25% 50% 75% & 100%
5) Temperature Control (Range) 0-400oC
    Maximum Temperature 400oC
    Accuracy Temperature ± 3oC
6) Time-Control 0-99 Minutes
7) Residual Magnestium <1A / cm
8) Overall dimensions (wxdxh) (mm) 1000 X 580 X 850
9) Space between supports (wxh) (mm) 350 X 450
10) Weight (Main Unit) 300 Kg.
11) Weight with Standard Yokes 345 Kg
12 ) Horizontal York Sizes (mm) 100 X 100 X 625 for bore dia. 140 MM & above
  -----
  -----
13) Colour of the Equipment RED / BLUE & APPLE GREEN
Optional Accessories
1) Horizontal Yoke Sizes (mm) 50 X 50 X 625 for bore dia.
68 MM & above
  60 X 60 X 625 for bore dia.
83 MM & above
  70 X 70 X 625 for bore dia.
95 MM & above
  80 X 80 X 625 for bore dia.
112 MM & above
2) Digital Thermometer (0-500 C)
3) Roll-Sliding Model
4) Swing Arm Model
5) Riser Block (Pair) (mm) -----
6) Magnetic Temperature Probe
7) Equipment Trolley
8) Hydraulic Equipment Trolley
9) Hydraulic Stacker for loading &      unloading of Component




Induction Heater GM25V
( Swing Arm Model )

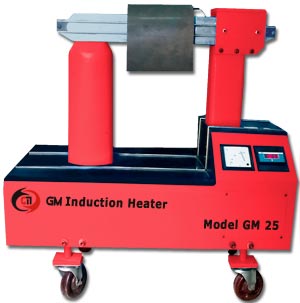

Induction Heater GM25
( Roll-Sliding Model )

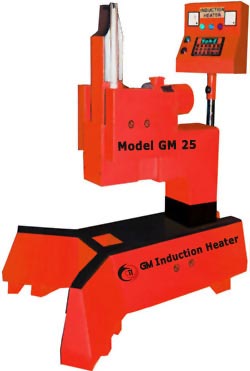

Induction Heater GM25
( Vertical Model )
